Forged olet Fitting

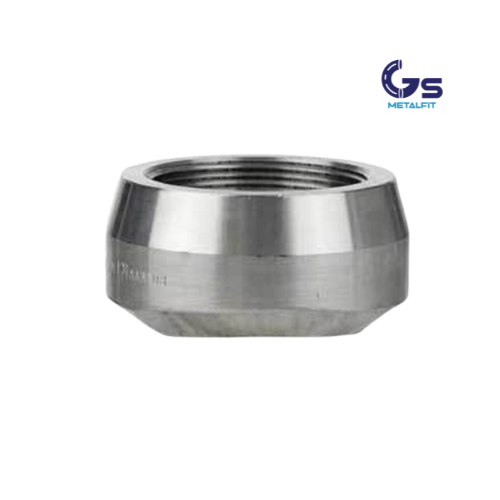

Sockolet
GS MetalFit supplies Sockolet fittings for branch connections in industrial piping systems. Available options include forged and socket weld outlet fittings, along with other specified connection types, material grades, sizes, schedules and pressure classes.
Product Type:
Sockolet
Size :
1/8" NB to 4" NB for socket weld and threaded connections
Shape:
Equal Shape Sockolet
Pressure Class:
1500#, 3000#, 6000# and 9000#
About This Product
Sockolet
Sockolet is a branch connection fitting used to provide an outlet from a main pipe. It belongs to the olet fitting family and is available in different material grades, sizes, schedules and pressure classes according to the specified requirements.
GS MetalFit offers Sockolet fittings in stainless steel, alloy steel, carbon steel, duplex and super duplex steel, high nickel alloys, cupro nickel and other special grades listed below. The available product range includes socket weld outlets, forged olet fittings, threaded outlets, butt weld outlets, lateral outlets, sweep outlets, nipple outlets, elbow outlets, coupling outlets and other branch connection forms.
Sockolet options can be specified by outlet size, run pipe size, schedule, pressure class, material grade and connection type. NPT threaded, socket weld and butt weld configurations are included in the source’s stated product range. Special sizes may be specified according to customer requirements.
Technical Specifications
Manufacturing Processes
- Free Forging
- Plate Cutting
- Forging
- Threading
- Heat Treatment
Material Testing, Documentation and Quality Records
- Raw Material Test Certificate
- Material IGC (Intergranular Corrosion) Test
- Material Dimension Chart
- Material Heat Treatment Chart
- PMI Report (Positive Material Identification)
- Material Chemical Analysis Report
- NBL Government-Approved Laboratory Test Reports
- Quality Assurance Plan (QAP)
- Material Hardness Testing Report
- Material Mechanical Properties
- Material Chemical Report
- Material Pressure Capacity Certificate
- 100% Radiography Test Report
- Flattening Test / Flaring Test Reports
- Third-Party Inspection Report
Packing Options
Compliance Reference
Materials & Grades
Stainless Steel Weldolet
ASTM A182 F304
ASTM A182 F304L
ASTM A182 F304H
ASTM A182 F316
ASTM A182 F316L
ASTM A182 F316Ti
ASTM A182 F347
ASTM A182 F347H
ASTM A182 F309
ASTM A182 F310S
ASTM A182 F317
ASTM A182 F317L
ASTM A182 F904L
ASTM A182 F321
ASTM A182 F321H
ASTM A182 F446
ASTM A182 F440
Alloy Steel Weldolet
ASTM A182 F5
ASTM A182 F9
ASTM A182 F11
ASTM A182 F12
ASTM A182 F22
ASTM A182 F91
Carbon Steel Weldolet
ASTM A105 / SA105N
ASTM A350 LF2
Duplex & Super Duplex Steel Weldolet
Duplex Steel:
ASTM A182 F51 / UNS S31803
ASTM A815 F60 / UNS S32205
Super Duplex Steel:
ASTM A182 F61 / UNS S32550
ASTM A815 F55 / UNS S32507
ASTM A815 F53 / UNS S32750
ASTM A815 / ASTM A182 Zeron 100
ASTM A815 UNS S31254 / SMO 254
Additional Grades:
F51 and F55 grades as listed in the source
Nickel Alloys
Nickel 200 — ASTM SB564, UNS N02200
Nickel 201 — ASTM SB564, UNS N02201
Hastelloy Alloys
Hastelloy B2 — ASTM SB564, UNS N10665
Hastelloy B3 — ASTM SB564, UNS N10675
Hastelloy C276 — ASTM SB564, UNS N10276
Hastelloy C22 — ASTM SB564, UNS N06022
Hastelloy C2000 — ASTM SB564, UNS N06200
Hastelloy X — ASTM SB564, UNS N06002
Monel Alloys
Monel 400 — ASTM SB564, UNS N04400
Monel K500 — ASTM SB564, UNS N05500
Inconel Alloys
Inconel 600 — ASTM SB564, UNS N06600
Inconel 601 — ASTM SB366, UNS N06601
Inconel 625 — ASTM SB564, UNS N06625
Inconel 718 — ASTM SB366, UNS N07718
Inconel 725 — ASTM SB564, UNS N07725
Inconel 825 — ASTM SB366, UNS N08825, as listed in the source
Cupro Nickel & Copper Alloys
Cupro Nickel 90/10 — ASTM SB61, UNS C70600
Cupro Nickel 70/30 — ASTM SB61, UNS C71500
CuNi10Fe1Mn — ASTM SB62
CuNi30Mn1Fe — ASTM SB62
Cupro Nickel C71640 — SB151
Aluminium Bronze C61400 — ASTM B171
Nickel Aluminium Bronze C63000 — ASTM B150
C46400 Brass — ASTM B21
Other Special Grades
Alloy 20 — UNS N08020
SMO 254
Titanium Grade 2
Titanium Grade 5, where specified
Carbon Steel A105
Alloy Steel
Inconel 800
Hastelloy C22 and B2
Duplex and Super Duplex grades F51 and F55
Applications
Branch Pipe Connections
Main Pipe to Branch Pipe Connections
Industrial Piping Systems
Pipeline Branch Outlets
Process Piping Connections
Welded Branch Connections
Why Choose GS MetalFit?
Multiple Material Options
Stainless steel, alloy steel, carbon steel, duplex, super duplex, high nickel alloys, cupro nickel and other listed special grades.
Different Connection Types
Socket weld, butt weld and threaded configurations, including NPT threaded options.
Wide Range of Product Forms
Weldolet, Sockolet, Threadolet, Letrolet, Insert Weldolet, Elbolet, Nipolet, Sweepolet, Brazolet, Coupolet, Nippo Flange, Flangeolet and Flexolet.
Range of Olet Forms
Outlet sizes, run pipe sizes and schedules listed in the technical specifications.
Size and Schedule Options
Outlet sizes, run pipe sizes and schedules listed in the technical specifications.
Pressure Class Options
Multiple pressure classes as specified in the source, subject to technical confirmation.
Supporting Documentatios
Material test certificates, chemical analysis, mechanical testing, PMI, heat-treatment records and inspection reports, as applicable to the order.
Customer-Specific Requirements
Special sizes and other specified requirements can be discussed during enquiry.
