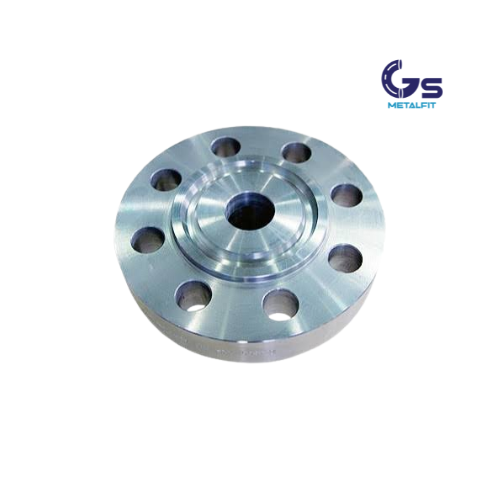

Ring Type Joint Flanges (RTJ Flanges)
Precision-engineered Ring Type Joint Flanges designed for secure, high-pressure pipe connections, reliable sealing and demanding industrial and process piping applications.
Product Type:
Ring Type Joint Flanges / RTJ Flanges
Size Range:
1/2" NB to 84" NB
Standards:
ASME / ANSI / ASTM
Pressure Class:
150 to 2500 LBS
Application:
High-Pressure, Industrial & Process Piping
About This Product
Ring Type Joint Flanges (RTJ Flanges)
GS MetalFit supplies Ring Type Joint Flanges designed for piping systems where reliable sealing and secure flange connections are required under demanding operating conditions. RTJ flanges use a specially machined ring groove that accommodates a metallic ring gasket to provide a strong and dependable sealing arrangement.
Our RTJ flange range is available in stainless steel, carbon steel, alloy steel, duplex and super duplex steel, nickel alloys and copper-nickel materials. Products can be supplied in different sizes, pressure classes, flange configurations, material grades and dimensions according to specified project requirements.
Ring Type Joint Flanges are commonly selected for high-pressure and high-temperature piping systems, including critical industrial, process, oil and gas, petrochemical and power applications
Product Forms
RTJ Flange
WNRTJ Flange
Weld Neck RTJ Flange
Slip On RTJ Flange
RTJ Raised Face Flange
Stainless Steel RTJ Flange
Carbon Steel RTJ Flange
Alloy Steel RTJ Flange
Duplex Steel RTJ Flange
Super Duplex RTJ Flange
Nickel Alloy RTJ Flange
Copper Nickel RTJ Flange
Technical Specifications
Materials & Grades
Stainless Steel Ring Type Joint Flanges
Available in ASTM A182 / A240 grades including F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H and 904L.
Duplex & Super Duplex Steel Ring Type Joint Flanges
Available in ASTM / ASME A/SA182 grades including F44, F45, F51, F53, F55, F60, F61, 2205 (UNS S31803) and 2507 (UNS S32750).
Carbon Steel Ring Type Joint Flanges
Available in ASTM / ASME A/SA105, A350, A181 LF2, A516 Grade 70, A36 and A694 grades including F42, F46, F52, F60, F65, F70, LF2 and LF3.
Alloy Steel Ring Type Joint Flanges
Available according to applicable ASTM / ASME A/SA182 and A387 specifications including grades F1, F5, F9, F11, F12, F22 and F91.
Copper & Cupro Nickel Ring Type Joint Flanges
Available in selected copper and copper-nickel grades including UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600 and C71500, including Cu-Ni 90/10 and Cu-Ni 70/30 grades.
Nickel Alloy Ring Type Joint Flanges
Available in ASTM / ASME SB564, SB160, SB472 and SB162 materials including Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 600, Inconel 601, Inconel 625, Inconel 800, Inconel 825, Hastelloy C276 and Alloy 20.
Applications
Process Piping
Oil & Gas Facilities
Chemical & Petrochemical Plants
Power Generation Projects
Refineries & Industrial Plants
Marine & Offshore Applications
General Engineering & Fabrication
Why Choose GS MetalFit?
Wide Material Selection
RTJ flanges are available in stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloys and copper-nickel grades.
High-Pressure Applications
Ring Type Joint Flanges are suitable for demanding piping systems where secure sealing and reliable flange connections are important.
Multiple Pressure Classes
Products can be supplied in pressure classes from 150 LBS to 2500 LBS according to specified requirements.
Different Flange Configurations
Weld neck, slip on and other specified RTJ flange configurations can be supplied based on project requirements.
Project-Based Specifications
Size, material grade, dimensions, pressure class, flange face and applicable standards can be selected according to customer drawings and technical specifications.
Ring Type Joint Flanges Manufacturer & Supplier
GS MetalFit supplies Ring Type Joint Flanges and RTJ Flanges for high-pressure, high-temperature and critical industrial piping applications. These flanges are designed with a machined ring groove that accommodates a metallic ring gasket, providing a reliable sealing arrangement for suitable piping systems.
Our RTJ flange range includes stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloy and copper-nickel materials. Products can be supplied in different sizes, pressure classes, flange configurations and material grades according to specified project requirements.
Ring Type Joint Flanges are available for applications where dependable sealing performance is important under demanding pressure and temperature conditions. Weld neck RTJ and other specified configurations can be supplied according to piping design and project requirements.
Products can be supplied according to applicable ASME, ANSI, ASTM, MSS and other specified standards, with dimensions and material grades selected based on customer specifications.
Stainless Steel Ring Type Joint Flanges
GS MetalFit supplies stainless steel RTJ flanges in commonly specified grades such as 304, 304L, 316, 316L, 321, 347, 904L and other applicable grades. These flanges can be selected for industrial piping systems where corrosion resistance and dependable flange performance are required.
Carbon Steel & Alloy Steel RTJ Flanges
Carbon steel and alloy steel RTJ flanges are available for applications where mechanical strength, pressure resistance and reliable pipe connections are important. Material options include ASTM A105, A350, A182 and A387 grades, subject to specified project requirements.
Duplex, Super Duplex & Nickel Alloy RTJ Flanges
For more demanding environments, GS MetalFit supplies duplex, super duplex and nickel alloy Ring Type Joint Flanges in materials such as UNS S31803, UNS S32205, UNS S32750, Nickel 200, Monel 400, Monel K500, Inconel 600, Inconel 625, Inconel 825, Hastelloy C276 and Alloy 20.
These material options can be considered for applications involving corrosive process media, elevated temperatures and other specialized industrial operating conditions.
Ring Type Joint Flanges for Industrial Project Requirements
GS MetalFit supports enquiries for Ring Type Joint Flanges used in oil and gas facilities, refineries, chemical and petrochemical plants, power projects, process industries, marine applications and general engineering systems.
Products can be supplied according to specified size, pressure class, material grade, flange configuration, dimensions, applicable standards and customer drawings.
