Flange Fittings
Blind Flanges
Precision-engineered blind flanges designed for secure pipe closure, pressure isolation, and reliable performance in industrial, process and high-pressure piping systems.
Product Type:
Blind Flanges / BLRF Flanges
Size Range:
1/2" NB to 48" NB
Standards:
ASME / ANSI / ASTM
Pressure Class:
150 to 2500 LBS
Application:
Industrial, Process & High-Pressure Piping
About This Product

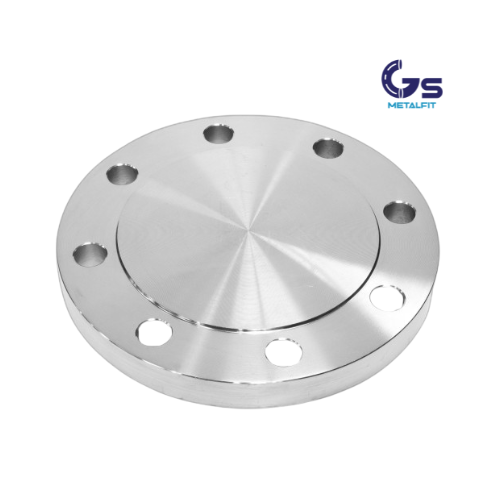

Blind Flanges
GS MetalFit supplies blind flanges designed to provide a secure closure for piping systems, valves, pressure vessels and other process equipment. Unlike flanges with a central bore, blind flanges are solid and are used where a piping section needs to be closed, isolated or prepared for future connection.
Our blind flange range is available in stainless steel, carbon steel, alloy steel, duplex and super duplex steel, nickel alloys and copper-nickel materials. Products can be supplied in different sizes, pressure classes, face configurations, material grades and dimensions according to specified project requirements.
Blind flanges are commonly used in piping systems where reliable pressure isolation and controlled access to the pipeline are required.
The range includes slip on, SORF and slip on plate flange configurations available in stainless steel, duplex, super duplex, carbon steel, alloy steel, nickel alloys and cupro nickel grades. Products can be supplied in different sizes, pressure classes, face types, materials and dimensions according to specified project requirements.
Product Forms
Blind Flange
BLRF Flange
Blind Plate Flange
Blind Raised Face Flange
Blind Flat Face Flange
Blind RTJ Flange
Stainless Steel Blind Flange
Carbon Steel Blind Flange
Alloy Steel Blind Flange
Duplex Steel Blind Flange
Super Duplex Blind Flange
Nickel Alloy Blind Flange
Copper Nickel Blind Flange
Technical Specifications
Materials & Grades
Stainless Steel Blind Flanges
Available in ASTM A182 / A240 grades including F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H and 904L.
Alloy Steel Blind Flanges
Available according to applicable ASTM / ASME A/SA 182 and A387 specifications, including F1, F5, F9, F11, F12, F22 and F91 grades.
Carbon Steel Blind Flanges
Available in ASTM / ASME A/SA 105, A350, A181 LF2, A516 Grade 70, A36 and A694 grades including F42, F46, F52, F60, F65, F70, LF2 and LF3.
Duplex & Super Duplex Steel Blind Flanges
Available in ASTM / ASME A/SA 182 grades including F44, F45, F51, F53, F55, F60, F61, 2205 (UNS S31803) and 2507 (UNS S32750).
Copper & Cupro Nickel Blind Flanges
Available in selected copper and copper-nickel grades including UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600 and C71500, including Cu-Ni 90/10 and Cu-Ni 70/30 grades.
Nickel Alloy Blind Flanges
Available according to ASTM / ASME SB564, SB160, SB472 and SB162 specifications, including Nickel 200, Nickel 201, Monel 400, Monel K500, Inconel 800, Inconel 825, Inconel 600, Inconel 625, Inconel 601, Hastelloy C276 and Alloy 20.
Applications
Industrial Piping Systems
Process Piping
Chemical & Petrochemical Industries
Oil & Gas Piping Systems
Power & Engineering Applications
Fabrication & General Industrial Systems
Why Choose GS MetalFit?
Wide Material Selection
Blind flanges are available in stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloys and copper-nickel grades.
Multiple Pressure Classes
Products can be supplied in pressure classes from 150 LBS to 2500 LBS according to specified project requirements.
Different Face Configurations
Flat Face, Raised Face and Ring Type Joint options can be supplied for different piping and pressure applications.
Project-Based Specifications
Size, material, dimensions, pressure class, flange face and applicable standards can be selected according to customer drawings and technical requirements.
Industrial Applications
Suitable flange solutions for piping, process, chemical, petrochemical, oil and gas, power, pressure vessel and general engineering applications.
Blind Flanges Manufacturer & Supplier
GS MetalFit supplies Blind Flanges and BLRF Flanges for industrial, process and high-pressure piping applications where reliable pipe closure and pressure isolation are required. Blind flanges are solid flange plates without a central pipe bore and are commonly used to close the end of a piping section or isolate equipment and pipeline connections.
Our blind flange range includes stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloy and copper-nickel materials. Products can be supplied in different sizes, pressure classes and face configurations according to specified project requirements.
Blind Flanges are available with Flat Face (FF), Raised Face (RF) and Ring Type Joint (RTJ) configurations. Products can be supplied according to applicable ASME B16.5, ASME B16.47, MSS SP-44, API 605, AWWA and other specified standards.
GS MetalFit supports enquiries for Blind Flanges used in industrial piping, process systems, chemical and petrochemical plants, oil and gas facilities, refineries, power projects, pressure vessel systems, marine applications and general engineering requirements.
Stainless Steel Blind Flanges
GS MetalFit supplies stainless steel Blind Flanges in commonly specified grades such as 304, 304L, 316, 316L, 321, 321H, 347, 347H and 904L. These flanges can be selected for piping applications where corrosion resistance and dependable service performance are important.
Carbon Steel & Alloy Steel Blind Flanges
Carbon steel and alloy steel Blind Flanges are available for applications where mechanical strength and pressure-handling capability are important. Material options include ASTM A105, A350, A182 and A387 grades, subject to specified project requirements.
Duplex, Super Duplex & Nickel Alloy Blind Flanges
For demanding service environments, GS MetalFit supplies duplex, super duplex and nickel alloy Blind Flanges in grades such as UNS S31803, UNS S32205, UNS S32750, Nickel 200, Monel 400, Inconel 600, Inconel 625, Inconel 825, Hastelloy C276 and Alloy 20.
These material options can be considered for applications involving corrosion, aggressive process media, elevated temperatures and other specialized operating conditions.
Blind Flanges for Industrial Project Requirements
GS MetalFit supplies Blind Flanges for domestic and international project requirements. Products can be prepared according to specified material grades, dimensions, pressure classes, flange faces, standards and customer drawings.
Whether the requirement is for stainless steel BLRF flanges, carbon steel blind flanges, duplex blind flanges, nickel alloy blind flanges or customized blind flange specifications, GS MetalFit supports product enquiries for a wide range of industrial piping applications.
These material options can be considered for applications involving corrosion, aggressive process media, elevated temperatures and other specialized operating conditions.
