Fasteners Fittings

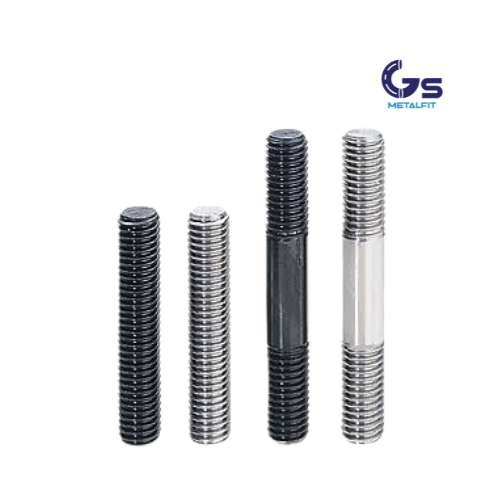

Full Threaded Stud
Precision-manufactured Full Threaded Studs designed for secure bolted connections, reliable fastening and demanding industrial, structural and engineering applications.
Product Type:
Full Threaded Stud / Fully Threaded Stud / Threaded Rod
Size Range:
M3 to M56 | 3/6" to 4" | Custom Sizes
Standards:
DIN, ASTM, BS & applicable International Standards
Length:
3 mm to 3000 mm
Application:
Industrial, Structural, Mechanical & Engineering Applications
About This Product
Full Threaded Stud
GS MetalFit manufactures and supplies Full Threaded Studs designed for fastening and bolted connections where continuous external threading is required along the length of the stud.
Full Threaded Studs provide threaded engagement with compatible nuts or internally threaded components and can be used in a wide range of mechanical, structural, piping, equipment and engineering assemblies.
Our range includes fully threaded studs, threaded studs, double-end threaded studs, rolled thread studs and UNC threaded studs. Products are available in stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloys and copper-nickel materials.
Full Threaded Studs can be supplied in standard and customized sizes, lengths, thread configurations and finishes according to applicable standards, customer drawings and project requirements.
Technical Specifications
Materials & Grades
Stainless Steel Full Threaded Stud
AISI 302, 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 410, 420 and 904L grades are available according to specified product and project requirements.
Duplex & Super Duplex Steel Full Threaded Stud
Applicable ASTM / ASME grades including UNS S31803, S32205, S31254, S31550, S32750 and S32760.
Carbon Steel Full Threaded Stud
Applicable carbon steel grades and specifications including ASTM A307 and other grades according to the required application and standard.
Alloy Steel Full Threaded Stud
Applicable ASTM / ASME A193 / A194 grades including B6, B7, B7M, B16, Grade 2, 2HM, 2H and Grade 6, according to project requirements.
Nickel Alloy Full Threaded Stud
Applicable ASTM / ASME nickel alloy specifications including SB336, SB564, SB160, SB163 and SB472. Available grades include Nickel 200, Nickel 201, Monel 400, Alloy 20, Inconel 825, Inconel 600, Inconel 601, Inconel 625 and Hastelloy C276.
Copper & Copper-Nickel Alloy Full Threaded Stud
Applicable ASTM / ASME SB111 and SB466 materials including UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600 and C71500. Copper-Nickel materials include Cu-Ni 90/10 and Cu-Ni 70/30.
Applications
Industrial Equipment
Structural Applications
Construction & Fabrication
Process Equipment
Oil & Gas
Chemical & Petrochemical
Power Generation
Marine & Offshore
General Engineering
Machinery & Equipment Assembly
Why Choose GS MetalFit?
Wide Material Selection
Stainless steel, carbon steel, alloy steel, duplex, super duplex, nickel alloys and copper-nickel materials.
Multiple Thread Configurations
Full thread, rolled thread, UNC and other specified thread configurations.
Wide Size & Length Availability
M3 to M56 with lengths up to 3000 mm and custom dimensions.
Standard & Custom Requirements
Products can be supplied according to applicable standards, technical specifications and customer drawings.
Industrial Application Support
Suitable for structural, mechanical, piping, equipment and engineering requirements.
